EX129IR

Explosionproof housing for thermal cameras

EX129IR - Explosionproof housing for thermal cameras
Contact sales

Application

Hazardous area


Markets

  • Oil & Gas

  • FIBER OPTIC
  • CERTIFICATION TEMPERATURE -40°C +75°C
  • 230VAC BUILT-IN PSU
  • IP66/67
  • POE
  • ANALOG CAMERA
  • BOSCH DINION IP CAMERA INSIDE
  • WITH GRID
  • WITHOUT GRID
  • SUITABLE FOR IR CAMERA

Certifications

  • ATEX CERTIFICATION
  • IECEX CERTIFICATION
  • UKCA CERTIFICATION
  • INMETRO CERTIFICATION

Documents


Description

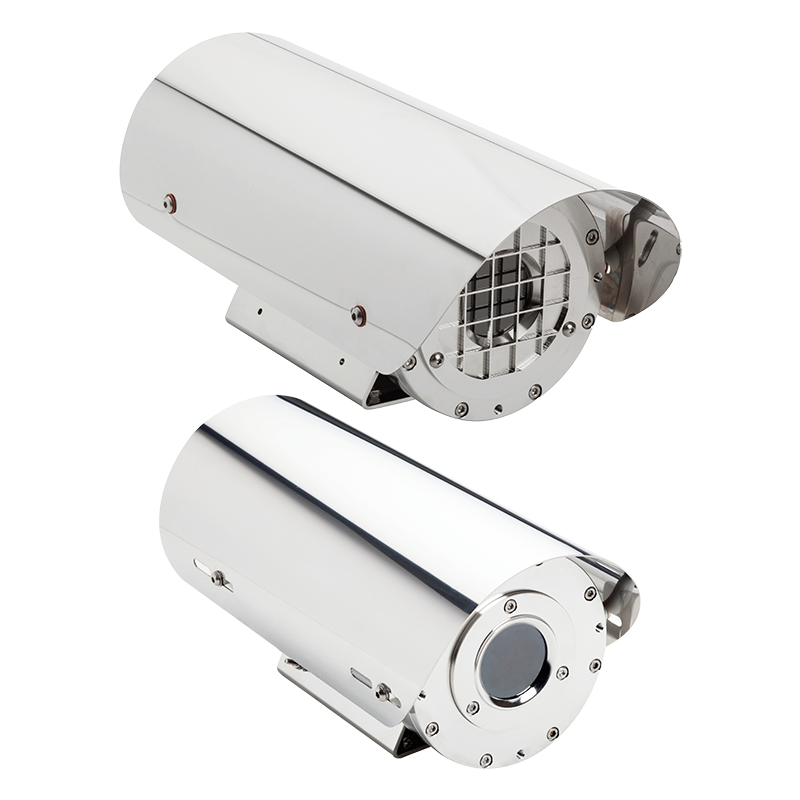

EX129IR is a ATEX/IECEx/UKCA/INMETRO certified explosionproof camera housing, made in electro-polished AISI316L stainless-steel, specifically designed for Hazardous Area applications.
It is available in different flavors:
- Germanium window, for the 7,5-14µm (LWIR) and protection grid
- Sapphire window, for 1-5µm (MWIR/SWIR), and protection grid
- Gridless (patented) Germanium window, for the 7,5-14µm (LWIR). The gridless version allows unprecedent field of view without interference, appreciated in applications the thermal camera is combined with Video Analytics or in thermography.


Features

  • ATEX/IECEx/UKCA/INMETRO camera for hazardous locations
  • AISI316L stainless steel construction
  • Germanium or Sapphire window version (LWIR or MWIR/SWIR cameras)
  • Gridless germanium window version available (LWIR)
  • Certification temperature -40°C +75°C
  • Optional built-in fiber media converter
  • Optional built-in 230vac power supply
  • Weatherproof standard IP66/IP67
  • Available for customer specified thermal cameras
  • For analog or IP cameras
