NEXT
FUTURE GENERATION CAMERA

January 2023

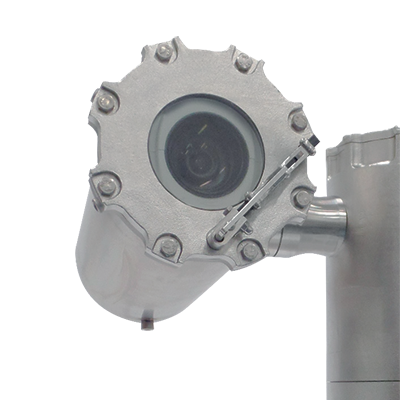

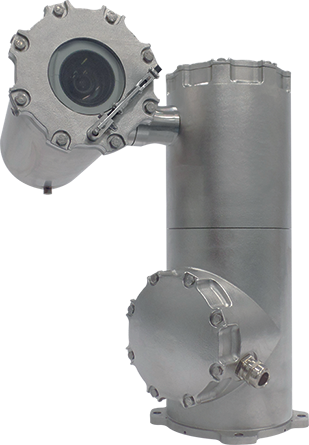

NEXT explosionproof camera stations set the new benchmark in the videosurveillance industry in Hazardous environments. They have everything you need: 4K camera, rugged, modern design, durable, withstanding very cold and hot temperatures, proved reliability in extreme conditions. NEXT is the ideal video surveillance solution for potentially explosive environments in the Oil & Gas industry: exploration, extraction, manufacturing and refining processes, pipelines, storage tanks, either onshore or offshore.

NEXT features an amazing 4K (8MP) (*) full frame rate IP camera that delivers crispy and detailed images for better video surveillance.

CAMERA FEATURES

  • 1 / 1.8" SONY PROGRESSIVE CMOS
  • 4K (8MP) RESOLUTION (3864x2180)
  • DAY/NIGHT CAMERA
  • 22x AUTOFOCUS OPTICAL ZOOM
  • WDR/ MULTI-EXPOSURE HDR, HIGH QUALITY IMAGE IN ANY LIGHT CONDITION
  • MULTICODEC H.265/H.264/MJPEG
  • QUAD REAL TIME STREAMING, LOW LATENCY
  • 3D MOTION COMPENSATED NOISE REDUCTION
  • EDGE RECORDING ON MICRO SD
  • EIS ELECTRONIC IMAGE STABILIZER
  • ONVIF S/G/T/Q

(*) 3MP Day/Night, 33x AF Optical also available

Can connect to any sort of physical Ethernet network:

  • CAT.5 AND CAT.6 TWISTED PAIR
  • DIRECT SM/MM FIBER OUTPUT
  • IP OVER COAX (FOR EASY UPGRADE OF LEGACY ANALOG SYSTEMS INTO DIGITAL)

MAIN FEATURES

  • EXPLOSIONPROOF ATEX/IECEX/UKCA/INMETRO
  • AISI 316L STAINLESS STEEL ELECTROPOLISHED
  • CERTIFICATION TEMPERATURE -60°C +80°C (-76°F +176°F)
  • WEATHERPROOF IP66/68/69
  • VARIABLE SPEED, 0-40° /s
  • TESTED UNDER THE MOST SEVERE CONDITIONS
  • MODERN & COMPACT DESIGN
  • HIGH PRECISION GEAR TECHNOLOGY, HIGH LIFETIME

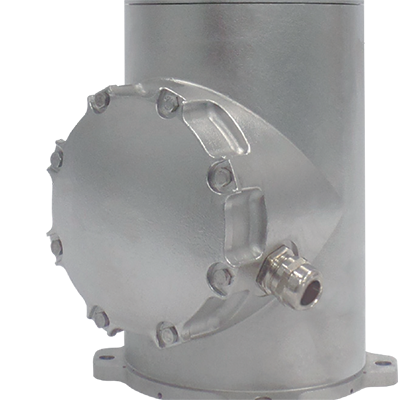

  • INSPECTABLE JUNCTION BOX
  • WINDOW WIPER
  • SINGLE/DOUBLE CABLE ENTRY
  • LOWEST POWER CONSUMPTION IN THE MARKET (< 10W)*
  • OPTIONAL BUILT-IN SM/MM FIBER MEDIA CONVERTER
  • OPTIONAL BUILT-IN IP OVER COAX
  • 24VAC, 120V OR 230V

(*) PTZ stationary, wiper/heateroff

UNRIVALED EASY MAINTENANCE

  • CLIENT CAN DO MOST OF MECHANICAL AND ELECTRONIC MAINTENANCE (*)
  • NO NEED TO SEND THE UNIT BACK TO TECNOVIDEO
  • REDUCTION OF DOWN TIME
  • CLIENT CAN BUY SPARE PARTS IN ADVANCE

(*) Minimum Training is required
