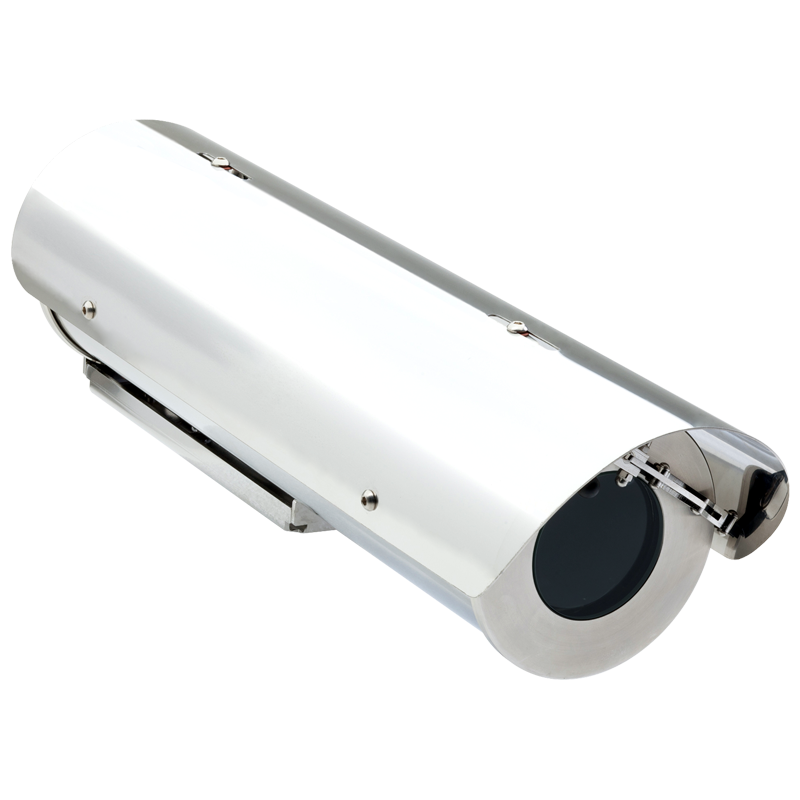

129IR CCTV fixed thermal camera housing

129IR series is a medium size stainless-steel camera housing, specifically designed for application in highly corrosive environments.
It is equipped with Germanium front window with AR/DLC coating for 7,5-14 µm range, available in two sizes: 50mm and 70mm diameter. The housing is available with sunshield and heather/demister (upon request). An additional version features sunshield, heather/demister and wiper.
129IR series is suitable for integration of a variety of customer selected thermal imaging cameras.
Additional accessories available include cable tails, washer systems, as well as AISI316L stainless steel mounting brackets.

Features

  • AISI316L stainless steel construction
  • IR germanium window available in two sizes: Ø=50mm and Ø=70mm
  • Suitable for customer specified thermal imaging cameras
  • IP66/IP67 Weatherproof standard
  • Operating temperature: -20°C + 75°C
  • Sunshield and heater/demister
  • Optional wiper (RX24IO telemetry receiver recommended for wiper activation)
  • 2x M20x 1,5 cable entries

Models

Code Length (mm) Sunshield Heater Wiper Front usable window Ø (mm) Front window air barrier
129IR50 360       50
129IR50-L 460       50
129SHIR50 360   50
129SHIR50-L 460   50
129WWIR50 360 50
129WWIR50-L 460 50
129IR70 360       70
129IR70-L 460       70
129SHIR70 360   70
129SHIR70-L 460   70
129WWIR70 360 70
129WWIR70-L 460 70
129ABIR70 360 optional optional   70
