EXIRLED
ATEX Infra-Red illuminator

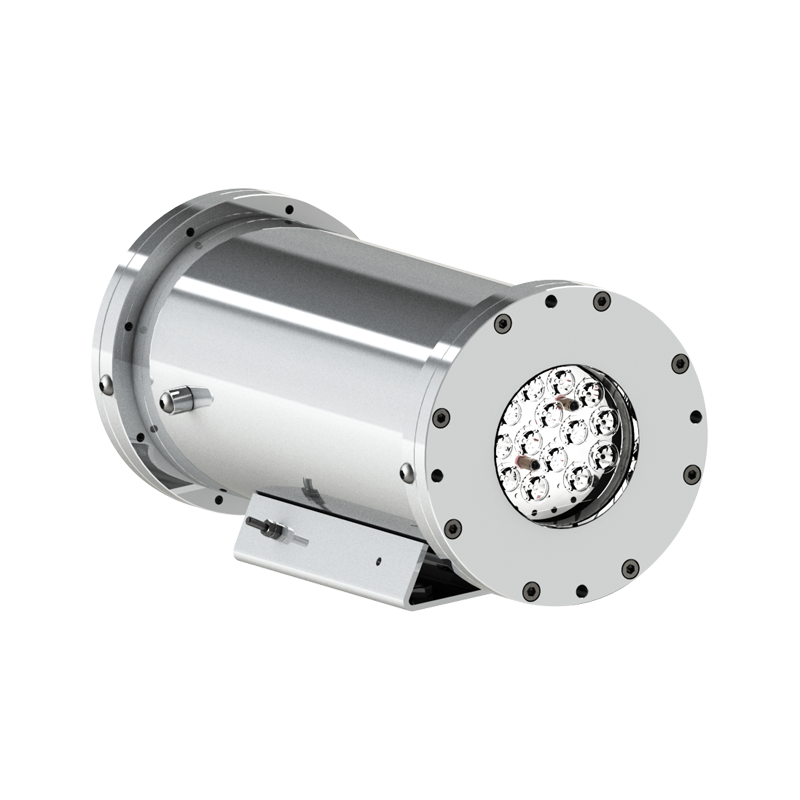

EXIRLED is an Explosion proof Infra-Red illuminator entirely made in electropolished Stainless Steel AISI316L, engineered and manufactured in Italy. It has been specifically designed for Hazardous Area applications, whereby duration, reliability and high performance are essential.
Tecnovideo IR illuminators are ATEX and IECEx certified for Zone 1/21 and 2/22 applications and have a T5 temperature class. EXIRLED are intended for hazardous area video surveillance applications, to allow cameras to detect high quality images at night-time.
Equipped with standard sunshield, EXIRLED feature 14 x SMD Infra-Red Led with the following circular beam patterns: 15°, 19° and 34° to suit any field application. 850 nm wavelength maximises light output.
Tecnovideo IR illuminators are easy to install, maintain and offer a long-lasting performance even when installed in harsh conditions. The certified operating temperature they can withstand is -40° +60°C.

Features

  • 14 x SMD high power IR Led, 850 nm wavelength.
  • Circular beam patterns 15°, 19°, 34°.
  • High performance IR LED technology.
  • Electro-polished AISI316L stainless steel (AISI316L) housing.
  • Fitted as standard with stainless steel (AISI316L) sunshield.
  • Suitable for applications in Zone 1/21 and 2/22 applications and T5 temperature class.
  • ATEX and IECEx certified.
  • Operating temperature -40°C + 60°C (-4°F + 140°F).
  • Available AC supply voltage: 24V~; 115V~; 230V~ (±10%).
  • Available DC Ultra-Wide supply voltage: 12V= to 50V=.
  • External activation (via camera input/external light sensor).
  • Easy and quick installation, low maintenance service.
  • 2 years warranty.
