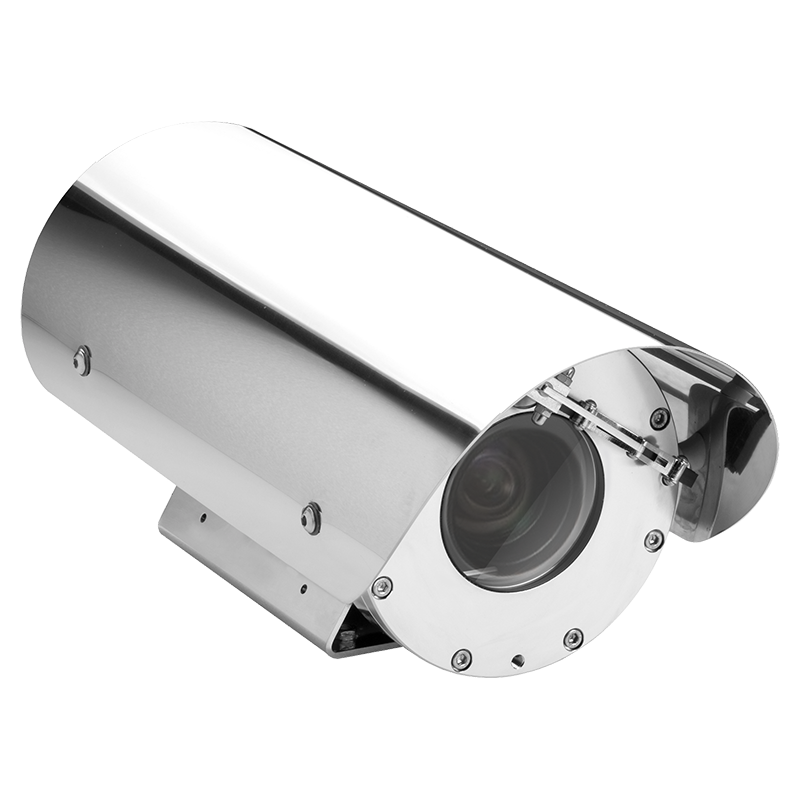

EXF129TB CCTV ATEX/IECEx fixed camera station

EXF129TB Series is an ATEX/IECEx certified electro-polished stainless-steel (AISI316L) fixed camera station, specifically designed for Hazardous Area applications. This camera station can integrate BOSCH DINION IP starlight cameras paired with Bosch varifocal lenses. It features sunshield, heater and two standard cable entries M25x1,5.
EXF129TB Series is designed for full compatibility with BVMS, Bosch's video management software, therefore supporting video analytics and all the advanced features packed into DINION IP starlight cameras. Fiber optic media converter (optional) can be requested to be integrated into the housing.
Its design ensures the best protection from external agents as well as promoting easy installation and maintenance services. Highest quality materials and production process, together with a modern design at a competitive price, make these housings the best solution to protect cameras installed in the most severe environments.
The sunshield protects the housing from heat and dirt, while the integrated heater demists the front window if required. A version with integrated wiper is also available.
Additional accessories available include armoured composite cable tails, washer systems as well as AISI316L stainless steel mounting brackets.

Features

  • ATEX/IECEx certification:
    II 2 G Ex db op pr IIC T6 Gb -40°C ≤ Tamb ≤ +60°C
    II 2 D Ex tb IIIC T85°C Db -40°C ≤ Tamb ≤ +60°C
    II 2 G Ex db op pr IIB T5 Gb -40°C ≤ Tamb ≤ +75°C
    II 2 D Ex tb IIIC T100°C Db -40°C ≤ Tamb ≤ +75°C
  • Electro-polished Stainless Steel (AISI316L)
  • Bosch DINION IP Starlight HD camera series with built-in video analytics:
    6000: NBN-63023-B
    7000: NBN-73023-BA
    8000: NBN-80052-BA
  • Bosch varifocal lenses:
    A model: LVF-5003N-S3813
    B model: LVF-5005C-S0940
    C model: LVF-5005C-S1803
    D model: LVF-5005C-S4109
    E model: LVF-5005N-S1250
    Please refer to the compatibility chart available in our technical datasheet.
  • Weatherproof standard IP66/IP67
  • Fitted as standard with sunshield and heater/demister
  • Integrated wash wiper version available
  • 2x M25x 1,5 cable entries
  • Operating temperature: -40°C + 75°C
  • Compatible with BVMS
  • Optional Fiber Optic media converter
