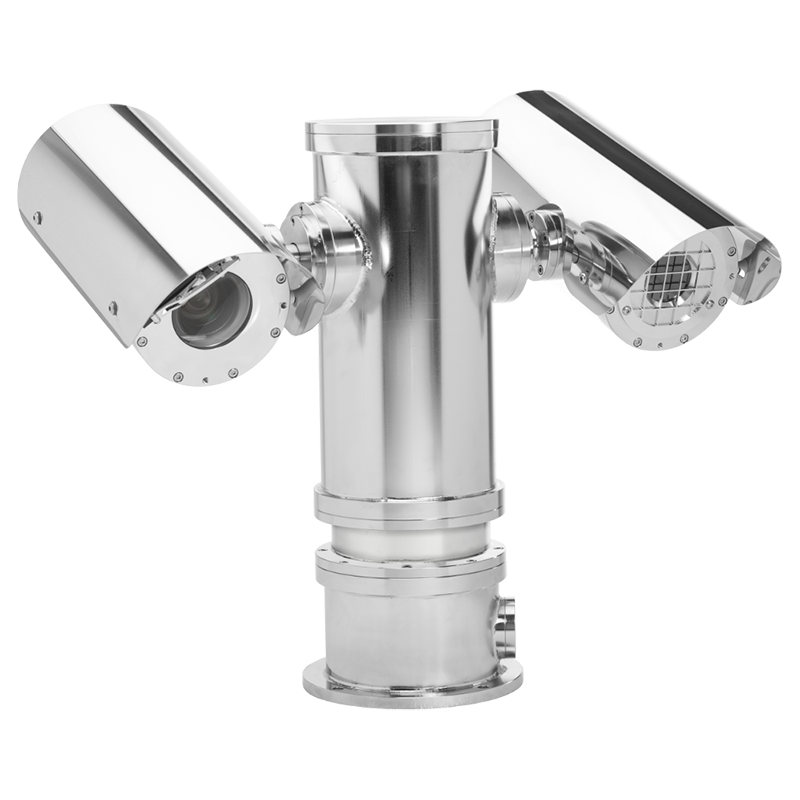

EXPTZDTV2 CCTV ATEX/IECEx Dual PTZ camera station

EXPTZDTV2 Series is an ATEX/IECEx certified PTZ camera station, entirely made in electro-polished AISI316L stainless-steel, specifically designed for Hazardous Area applications.
It is equipped with the latest generation 2065x1553 AF 33x optical zoom IP, day/night camera, as well as an uncooled LWIR Thermal imager in the auxiliary housing. The standard version of the auxiliary enclosure is equipped with Germanium window and a protective front grid. A patented certified gridless version is also available upon request.
EXPTZDTV2 design ensures the best protection from external agents as well as promoting easy installation and maintenance services. The pan and tilt units are equipped with wiper and sunshield to protect the camera housing from heat and dirt, while the integrated heater demist the housing front window if required. The PTZ cabling is fully comprehensive through the integrated base junction box. It is also possible to use a vast number of VMSs due to the EXPTZ ONVIF compatibility. Fiber optic media converter (optional) can be requested to be integrated into the PTZ base mount junction box.
Highest quality materials and production process, together with a modern design at a competitive price, make these PTZ camera stations the best solutions for installations in the most severe environments.
Additional accessories available include armoured composite cable tails, washer systems, as well as AISI316L stainless steel mounting brackets.

Features

  • ATEX/IECEx certification:
    II 2 G Ex db op pr IIC T6 Gb -40°C ≤ Tamb ≤ +60°C
    II 2 D Ex tb IIIC T85°C Db -40°C ≤ Tamb ≤ +60°C
    II 2 G Ex db op pr IIB T5 Gb -40°C ≤ Tamb ≤ +75°C
    II 2 D Ex tb IIIC T100°C Db -40°C ≤ Tamb ≤ +75°C
  • Electro-polished Stainless Steel (AISI316L)
  • Equipped with 2065x1553 @30FPS AF 33x optical zoom day/night camera
  • Fitted as standard with sunshield, wiper and heater/demister
  • 360° continuous pan rotation
  • 1x M25x1,5 fixed cable entry
  • Weatherproof standard IP66/IP67
  • Operating temperature: -20°C + 60°C (-4° + 140°F)
  • Compatible with ONVIF Profiles G, S, T
  • Optional Fiber Optic media converter available
